Description
Product Features

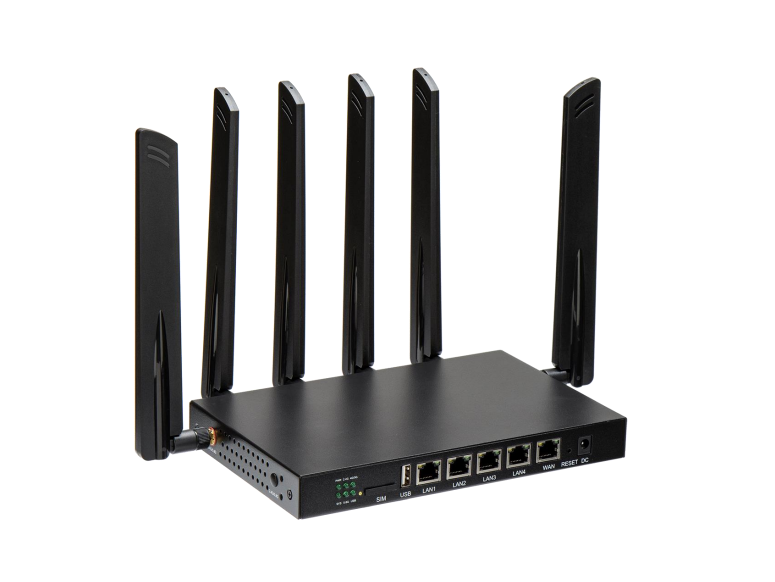

1 x Modem 4G CAT 6, 12 or 5G.
Dimensions: 217 mm x 140 mm x 30 mm.
(8 1/2” x 5 1/2” x 1 3/16 “)
Weight: 0.5 kg. (17.637 oz)
Environmental conditions: -10°C to +70°c. (14°F to 158°F)
Power Supply: DC 12V – 3A, Power consumption < 36W.
Technology: 5G NR (low-band, mid-band FR1) and 4G LTE
Category 20 LTE-Advanced Pro.
Fallback: WCDMA/UMTS/HSPA+.
Carrier Aggregation: LTE only; up to 7CA downlink, 2CA
uplink ENDC 5G + LTE.
Peak Downlink Rates: Up to 2 Gbps – based on 20 Layers
LTE + TDD (100 MHz BW, 256 QAM, 4 x 4).
5G NR Bands:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30
/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE-FDD Bands:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B2
5/B26/B28/B29/B30/B32/B66/B71
LTE-TDD Bands: B34/B38/B39/B40/B41/B42/B43/B48
LAA: B46
WCDMA: B1/B2/B4/B5/B8/B19
